Removing Front Camera

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

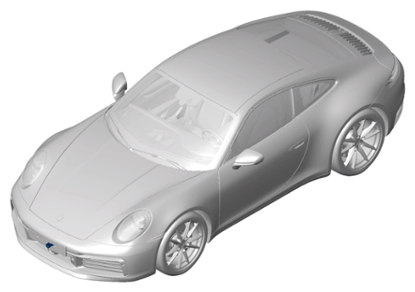

Installation position

1. Detach center radiator grille retaining frame.

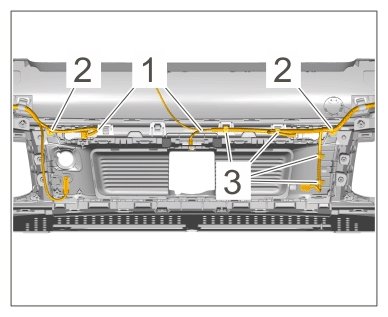

   1. 1.1 Loosen wiring harnesses -1-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Wiring harnesses

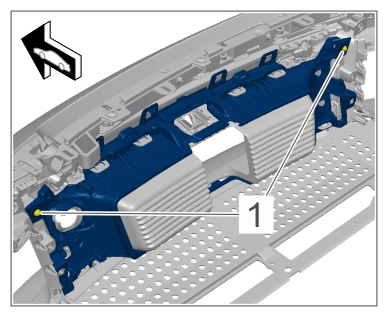

   2. 1.2 Unscrew screws.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Screws for radiator grille retaining frame

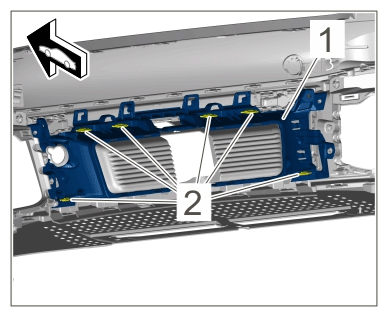

   3. 1.3 Disengage retaining frame for radiator grille -1-  from the locking lugs -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Retaining frame for radiator grille

2. Unclip front camera holder with front camera by pulling it forward.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unclipping front camera

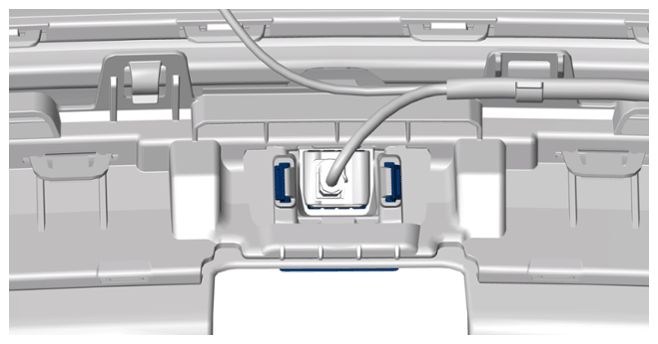

3. Release and disconnect electric plug connection.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for front camera

4. Pull front camera to the rear out of the holder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pulling out front camera
