Removing Side Camera

  1. Loosen fastening screws on camera holder.

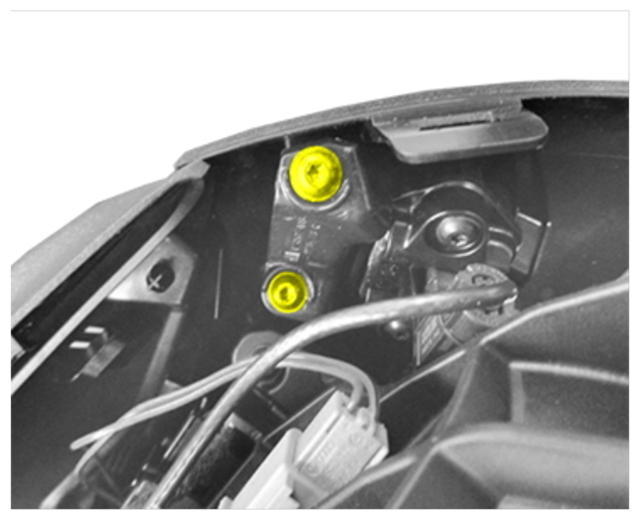

    G15535165Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screws on camera holder

  2. Remove camera with holder out of rear-view mirror housing lower part.
  3. Release and disconnect electric plug connection for camera -arrow-  .

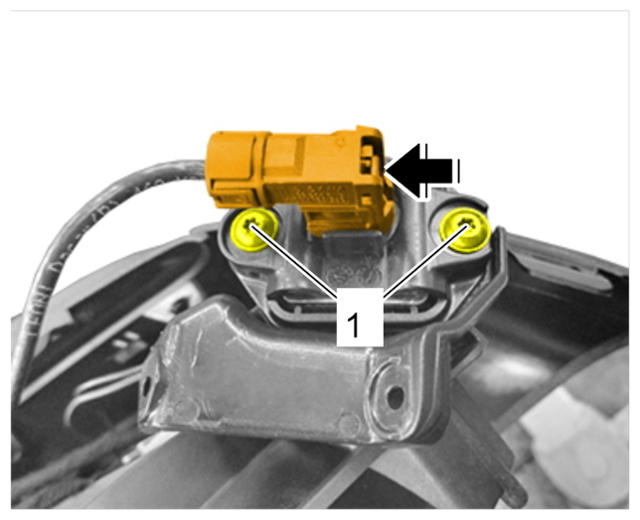

    G15535166Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Camera

  4. Unscrew fastening screws for camera -1-  and remove camera from holder.
