Removing Microphone For Telephone

  1. Release and disconnect electric plug connections -1-  on microphones for telephone.
    G15535161Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections

  2. Unclip microphones for telephone -2 and 3-  and remove them.

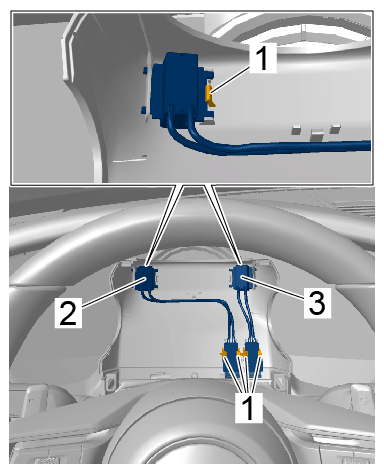

G15535162Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Microphones for telephone
