Programming Navigation Update On Central Computer

Information

The USB stick equipped with the market-specific NAVI data must be ordered in the PET via the regular spare parts channel.

1. Switch on the ignition.

   For vehicles up to MY 2021 (MIB 2), continue with Step 2.

   For vehicles from MY 2022 (MIB 3), continue with Step  3.

2. Insert SD card into the SD card slot on the center console.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

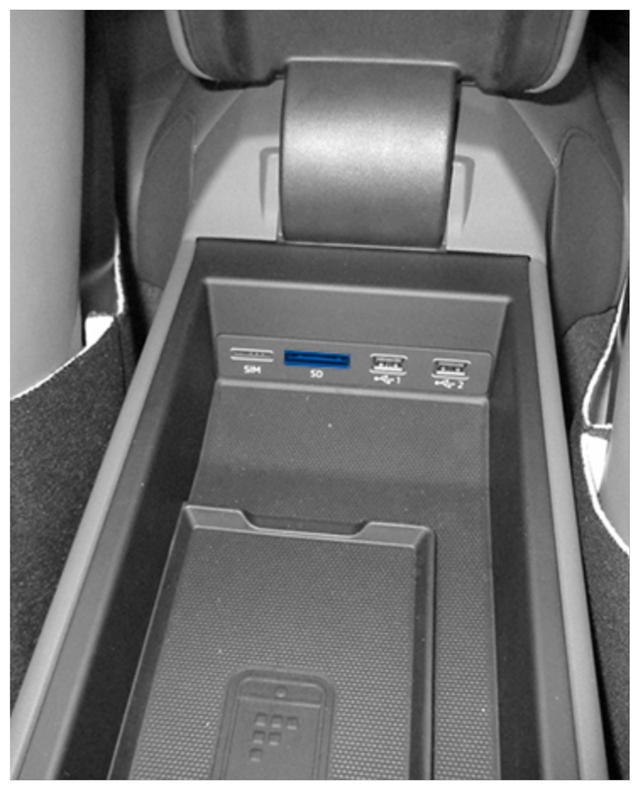

   SD card slot

3. Insert USB stick containing the vehicle-specific data into the USB slot on the center console.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

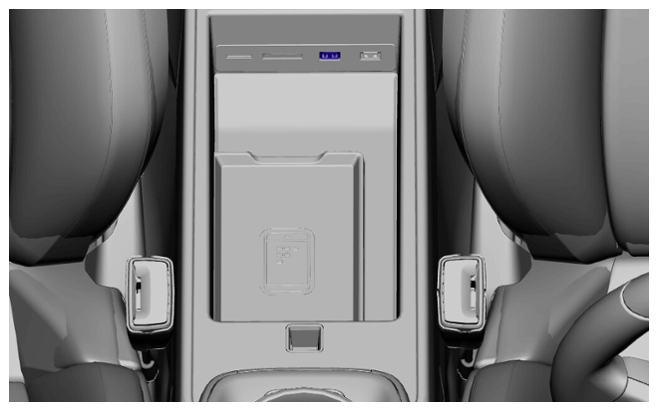

   USB slot

4. Select the menu Car  - Control  - System  - Software update  - Update  in the display and operator control unit.
5. Select Start  to start the update.

   It can take a long time for the data to load.

6. When the navigation update is complete, confirm with OK  .
7. Press Return  to go back to the main menu.
8. Remove SD card or USB stick from the vehicle.
9. Check data connection.
   1. 9.1 If the LTE symbol at the top right of the display is visible, the connection is active.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

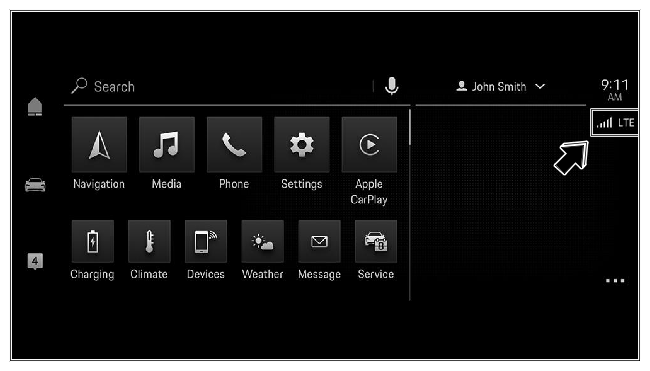

   Data connection (shown as an example)

10. Check availability of navigation system.
    1. 10.1 Call up navigation map.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

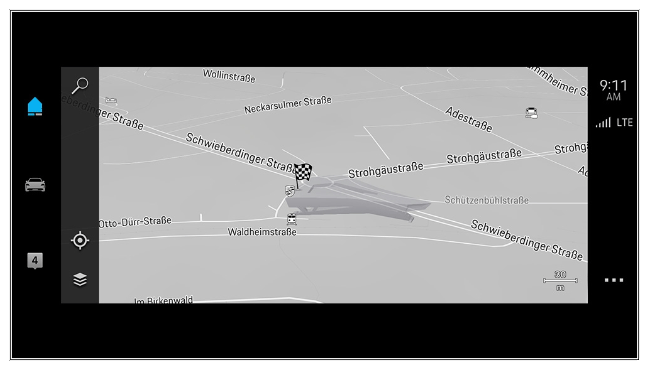

    Navigation map (shown as an example)

11. Perform a function test on the navigation system.
12. Check voice control.
    1. 12.1 Perform voice control test.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

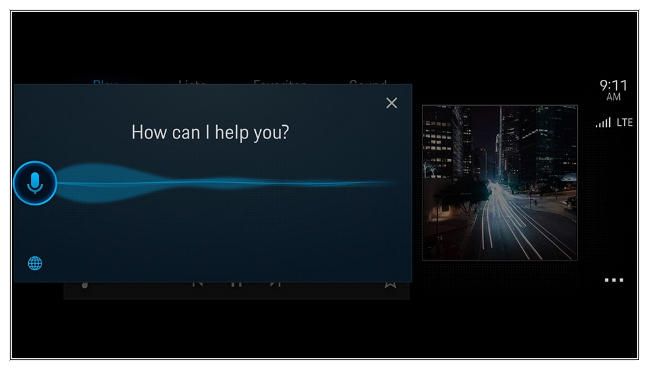

    Voice control (shown as an example)

13. Switch off the ignition.
