Removing Central Computer

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

→ Switch off electrical loads before disconnecting or removing them.

Information

Always comply with the regulations for handling ESD-sensitive components!

Always wear approved work clothes and shoes when carrying out assembly work.
Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
Do not touch electric pins and plug contacts.

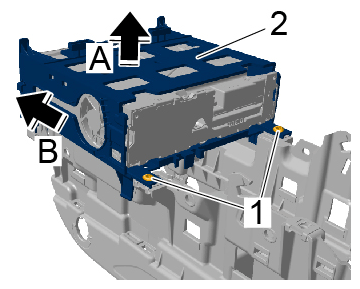

Unscrew fastening screws -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws
Disengage holder for central computer -2- by pulling it up -arrow A- and forward -arrow B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Holder for central computer

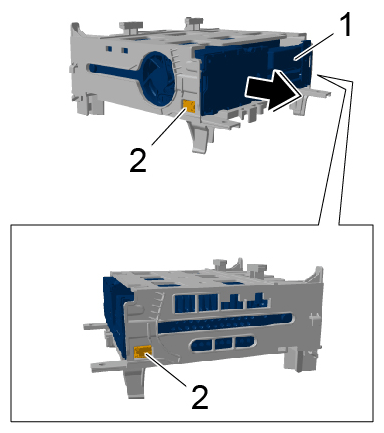

Release central computer -1- using > 9570/1 - disassembly tool (-2- ) and pull it out of the holder.

G15535149

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Central computer
