Removing Mobile Communication Antenna

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

→ Switch off electrical loads before disconnecting or removing them.

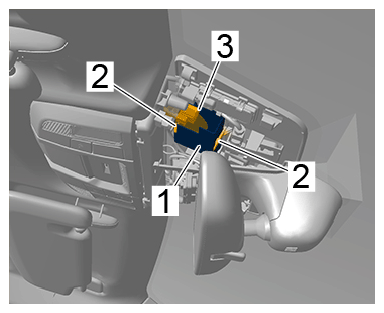

Unclip mobile communication antenna -1- (-2- ) and remove it until the electric plug connection -3- is accessible.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mobile communication antenna
Release and unplug electric plug connection -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection
