Removing Mobile Phone Antenna Amplifier
Information
Always comply with the regulations for handling ESD-sensitive components!
- Always wear approved work clothes and shoes when carrying out assembly work.
- Do not remove new part from ESD (electrostatic discharge) protective packaging until shortly before installation and only at the installation position.
- Do not touch electric pins and plug contacts.

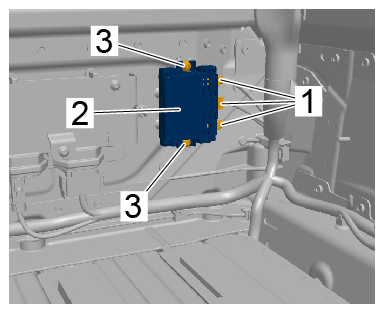

- Release and disconnect electric plug connections -1-
on mobile phone antenna amplifier -2-
.
Antenna amplifier for mobile phone
- Unscrew fastening screws -3- and remove mobile phone antenna amplifier -2- from the holder.
Fastening screws
