Replacing Loudspeaker Booster

Information

The PIWIS Tester  instructions take precedence since the description may be different with later Tester releases.

The procedure described here has been structured in general terms; different text or additions may appear in the PIWIS Tester  .

1. Connect the Tester to the vehicle and start it. Switch on ignition.

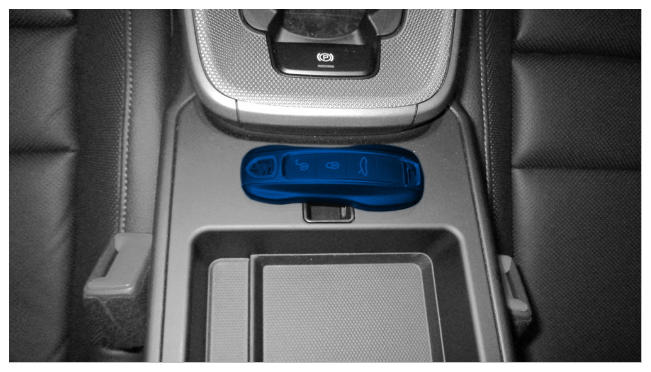

2. Place original remote control (hand-held transmitter) in emergency start tray.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Emergency start tray

3. Select the vehicle type if required.
4. Select the Amplifier  control unit in the overview  . Press F12 to start. The message "Create Vehicle Analysis Log (VAL)?" appears. Press F11 to continue.
5. Coding/programming  must be selected.
6. Automatic coding  must now be selected. Press F12 to continue.
   1. 6.1 The Tester displays the message: Coding was completed successfully.
7. Go back to the overview.
8. In the overview  , press F7 to switch to the Additional menu  .
9. Component protection start-up  must now be selected. Press F12 to continue.
   1. 9.1 Follow instructions and procedure.
   2. 9.2 Teach component protection according to menu guidance.
   3. 9.3 The Tester displays the message: Component protection taught.
10. Go back to the overview.
11. Teach combination sensor.
    1. 11.1 Select Airbag  control unit in the overview  .
    2. 11.2 Maintenance/repairs  must now be selected.
    3. 11.3 Teach combination sensor  must be selected. Press F12 to continue.
    4. 11.4 Read and follow the warnings and instructions on the Tester.
12. Read out the fault memory  , correct faults that are stored if necessary and clear the fault memory.
13. Exit the diagnostic application. Switch off ignition. Disconnect the Tester from the vehicle.
