Removing Loudspeaker Booster

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

→ Switch off electrical loads before disconnecting or removing them.

Information

Always comply with the regulations for handling ESD-sensitive components!

Always wear approved work clothes and shoes when carrying out assembly work.
Do not remove new part from ESD (electrostatic discharge) protective packaging until shortly before installation and only at the installation position.
Do not touch electric pins and plug contacts.

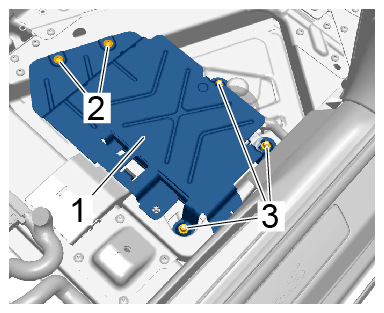

Loosen holder for loudspeaker booster -1- .
1. 1.1 Unscrew fastening screws -2- .
2. 1.2 Screw off fastening nuts -3- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Holder for loudspeaker booster

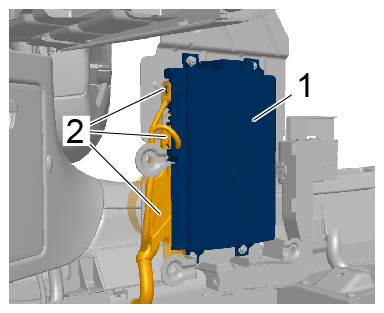

Remove holder with loudspeaker booster -1- .
1. 2.1 Remove holder with loudspeaker booster -1- until the electric plug connections -2- are accessible.
  Information

  The number of electric plug connections will vary depending on equipment.
2. 2.2 Release and disconnect electric plug connections -2- .
3. 2.3 Remove holder with loudspeaker booster -1- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loudspeaker booster

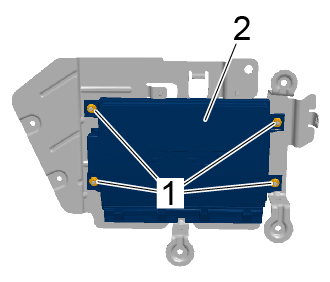

When replacing the loudspeaker booster -2- :
Unscrew fastening nuts -1- and remove loudspeaker booster -2- from the holder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loudspeaker booster
