Installing Loudspeaker Booster

1. Installation is performed in reverse order. Pay particular attention to the following:

   Tighten fastening nuts -1-  on left-hand drive vehicles to > Tightening torque 4 Nm (3 ftlb.)  , right-hand drive vehicles to > Tightening torque 5 Nm (3.5 ftlb.)  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

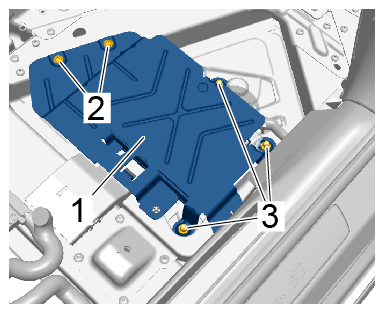

   Loudspeaker amplifier

2. Tighten fastening screws -2-  to > Tightening torque 8 Nm (6 ftlb.)  until secure.

   Tighten fastening nuts -3-  to > Tightening torque 2.5 Nm (1.75 ftlb.)  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

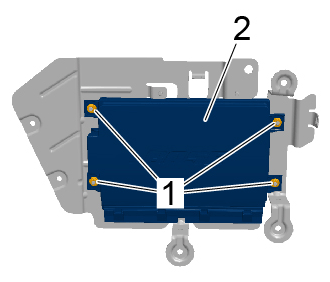

Holder for loudspeaker booster
