Removing Reversing Camera

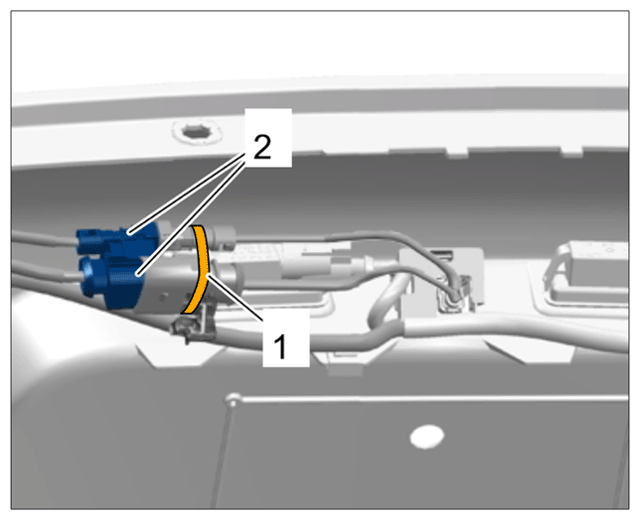

1. Cut and remove tie-wrap -1-  .
2. Unclip electric plug connections -2-  from the holder on the rear apron.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unclipping electric plug connections

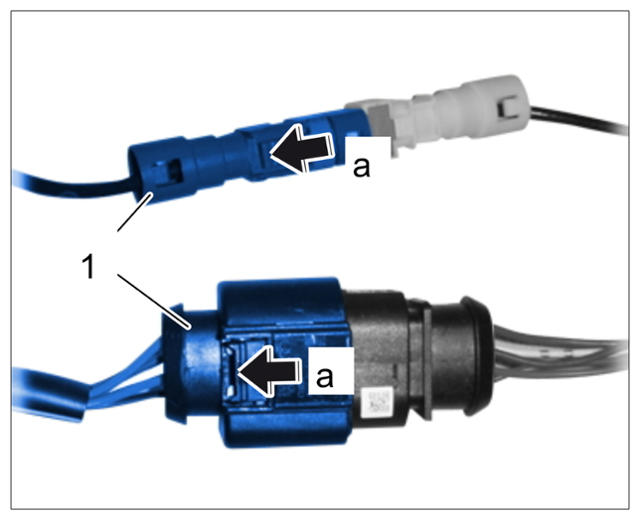

3. Release electric plug connections -1-  (-a-  ) and disconnect them.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Disconnect the electric plug connections

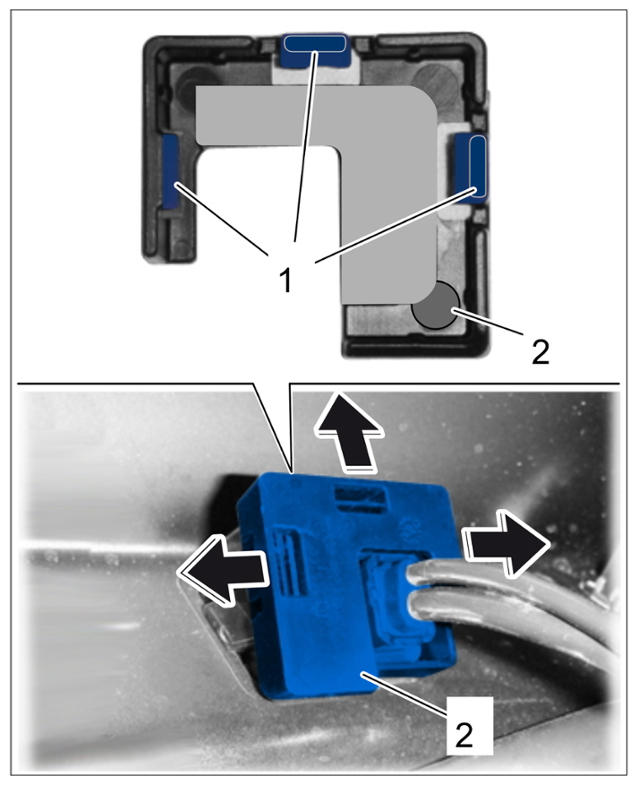

4. Disengage locking mechanisms -1-  on the cap -2-  in direction of arrow and remove cap.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing cap

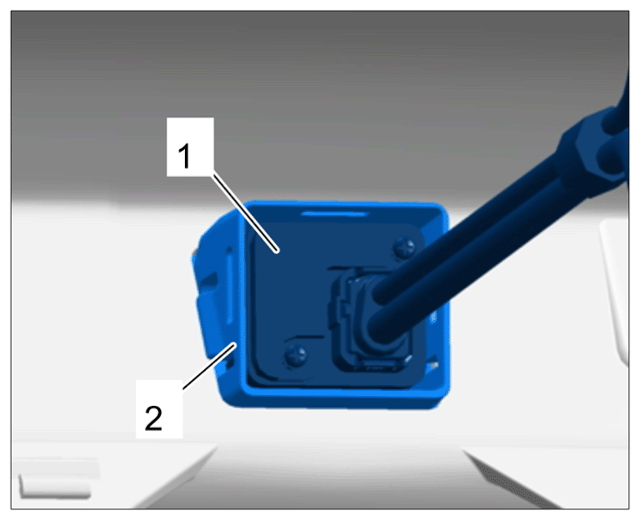

5. Remove reversing camera -1-  from the bracket -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing reversing camera

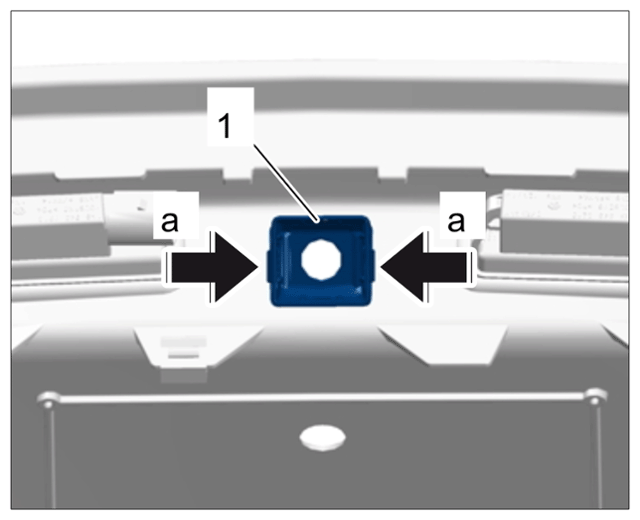

6. Release bracket -1-  if necessary -a-  and press it to the rear and out of the rear apron.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing bracket
