Removing Rear Tweeter

NOTE: Incorrect handling of components
  • Risk of irreparable damage to electric and electronic components
  • Reduced functionality

    → Switch off ignition and keep transmitter key outside of the transmission range (at least 2 m) before removing the loudspeakers.

  1. Press locking mechanisms -1-  outwards and remove rear tweeter -2-  from rear side trim panel.

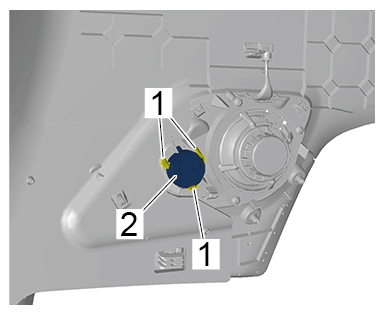

G15535108Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear tweeter
