Removing Woofer

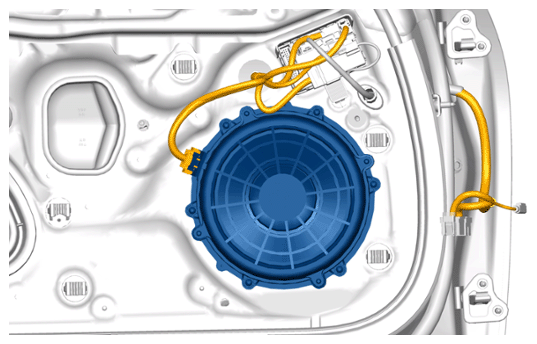

1. Release and pull off electric plug connection.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

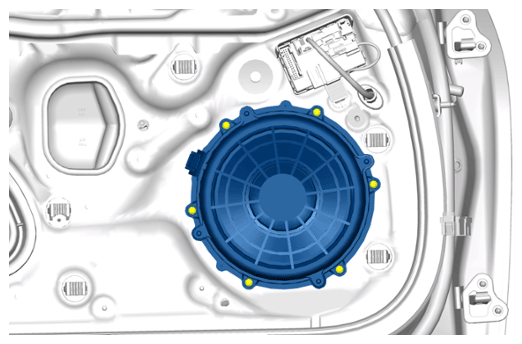

2. Loosen fastening screws and remove low-range loudspeaker (woofer).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Low-range loudspeaker (woofer)
