Removing Mid-Range Loudspeaker

  1. Loosen fastening screws and remove mid-range loudspeaker until the electric plug connection is accessible.

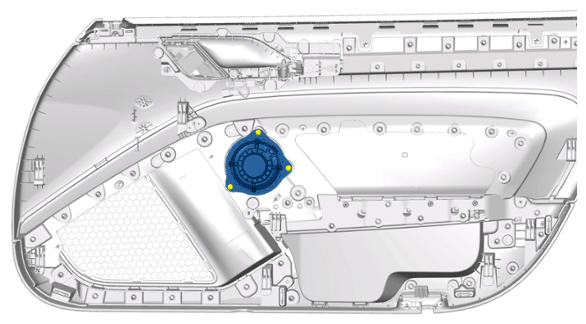

    G15535102Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mid-range loudspeaker

  2. Release and disconnect electric plug connection.
