Removing Front Loudspeaker (Side Of Dashboard)

NOTE: Voltage peaks
  • Risk of damage to electrical load or to the control unit
    1. Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
    2. Switch off electrical loads before disconnecting or removing them.
  1. Remove front loudspeaker (side of dashboard).

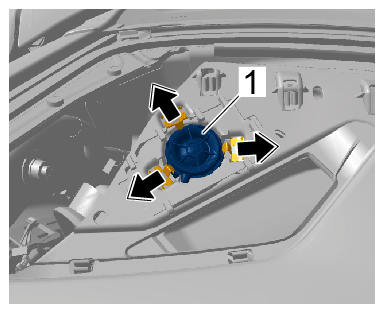

    1. 1.1 Open clamps -Arrows-  .
      G15535095Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Clamps

    2. 1.2 Remove front loudspeaker (side of dashboard) -1-  until the electric plug connection is accessible.

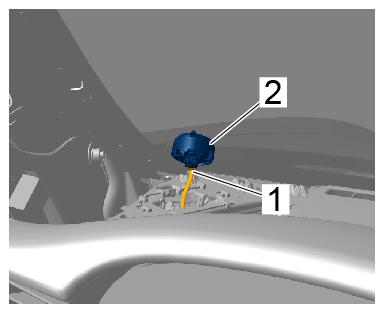

    3. 1.3 Release and unplug electric plug connection -1-  .
      G15535096Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Electric plug connection

    4. 1.4 Remove front loudspeaker (side of dashboard) -2-  .
