Removing Front Loudspeaker (Side Of Dashboard) On Vehicles With BURMESTER High-End Sound System

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

→ Switch off electrical loads before disconnecting or removing them.

Remove front loudspeaker (side of dashboard).

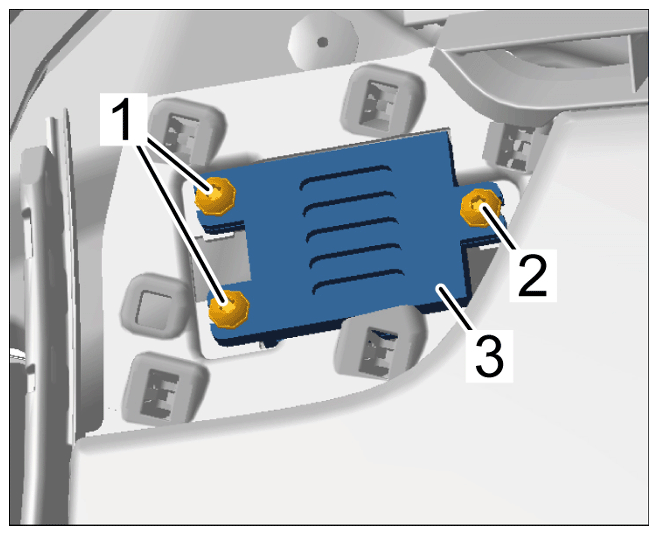

1.1 Unscrew fastening screws -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

1.2 Unscrew fastening screw -2- and remove front loudspeaker (side of dashboard) -3- until the electric plug connection is accessible.

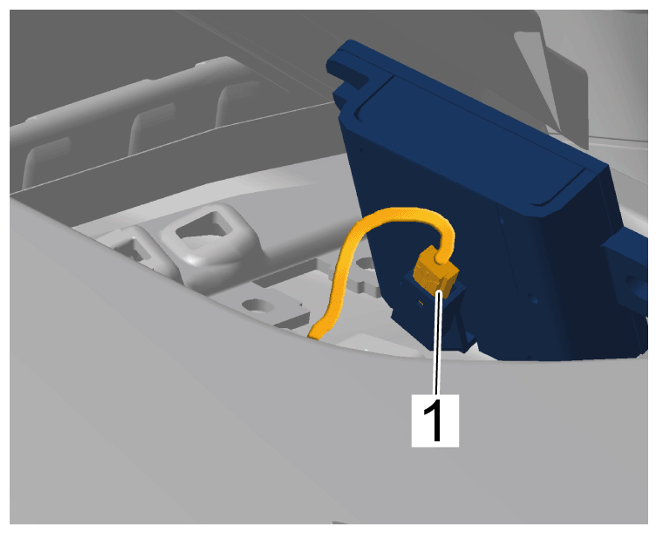

1.3 Release and unplug electric plug connection -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection
