Removing Front Loudspeaker (Centre Of Dashboard)

NOTE: Voltage peaks
  • Risk of damage to electrical load or to the control unit

    → Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

    → Switch off electrical loads before disconnecting or removing them.

  1. Remove front loudspeaker (center of dashboard).
    1. 1.1 Unscrew fastening screws -1-  .

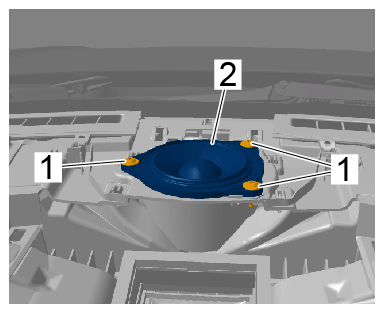

      G15535086Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Fastening screws

    2. 1.2 Pull out front loudspeaker (center of dashboard) -2-  until the electric plug connection is accessible.
    3. 1.3 Release and unplug electric plug connection -1-  .

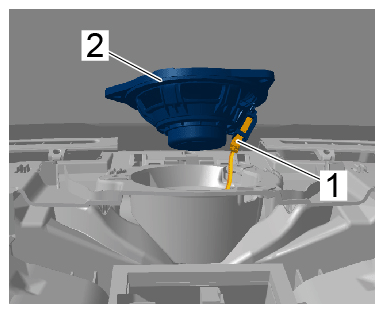

      G15535087Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Electric plug connection

    4. 1.4 Remove front loudspeaker (center of dashboard) -2-  .
  2. Only for Burmester High-End sound system:

    Remove front loudspeaker (center of dashboard).

    1. 2.1 Unscrew fastening screws -1-  .

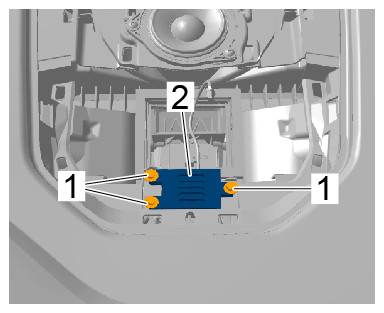

      G15535088Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Fastening screws

    2. 2.2 Pull out front loudspeaker (center of dashboard) -2-  until the electric plug connection is accessible.
    3. 2.3 Release and unplug electric plug connection -1-  .

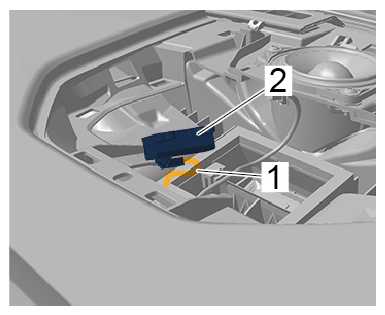

      G15535089Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Electric plug connection

    4. 2.4 Remove front loudspeaker (center of dashboard) -2-  .
