Installing Front Loudspeaker (Centre Of Dashboard)

1. Installation is performed in reverse order. Pay particular attention to the following:

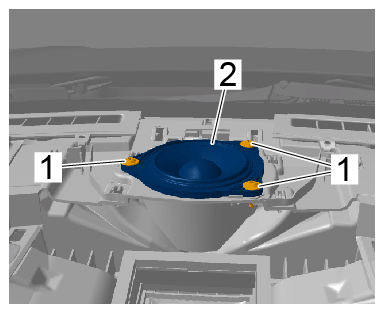

   Tighten fastening screws -1-  to > Tightening torque 3.2 Nm (2.1 ftlb.)  until secure.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

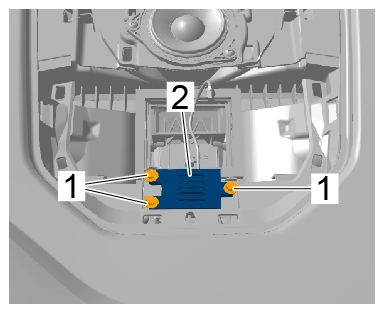

Only for Burmester high-end sound system:

Tighten fastening screws -1-  to > Tightening torque 3.2 Nm (2.1 ftlb.)  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws
