Installing SDARS Antenna

1. Installation is performed in reverse order. Pay particular attention to the following:

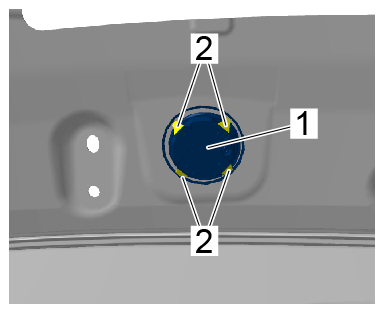

   Check retaining lugs -2-  on the SDARS antenna -1-  for damage.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Retaining lugs

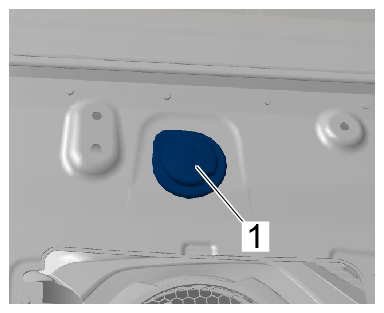

The arrow on the SDARS antenna -1-  must be pointing in direction of travel.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

SDARS antenna
