Home >> Porsche >> 2021 >> 911 Targa 4 >> Repair and Diagnosis >> Accessories & Equipment >> Infotainment >> 91 Radio, On-Board Computer Park Assist -- 992 - 911 CARRERA (992) >> WM, 913619 Removing And Installing Subwoofer >> Technical Values

Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening screws securing subwoofer to dashboard bracket Item 1 Tightening torque 3.5 Nm (2.5 ftlb.)

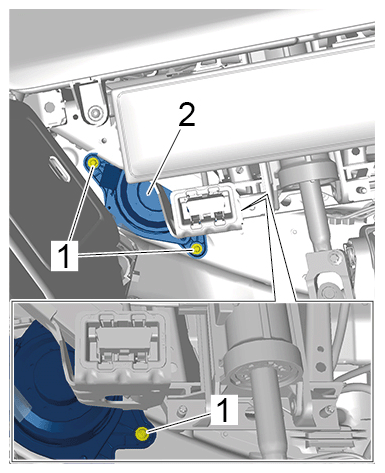

G15535073Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Subwoofer
