Installing Subwoofer

  1. Installation is performed in reverse order. Pay particular attention to the following:

    Tighten fastening screws -1-  to > Tightening torque 3.5 Nm (2.5 ftlb.)  until secure.

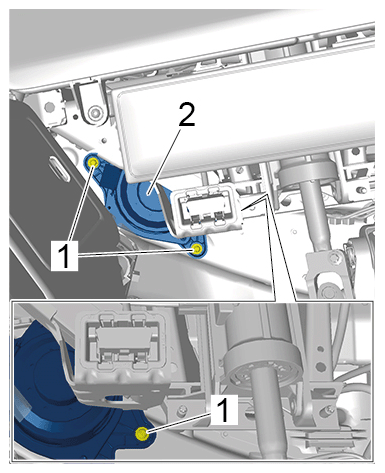

G15535077Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Subwoofer
