Removing Subwoofer

NOTE: Incorrect handling of components

Risk of irreparable damage to electric and electronic components
Reduced functionality
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 2 m) before removing the loudspeakers.

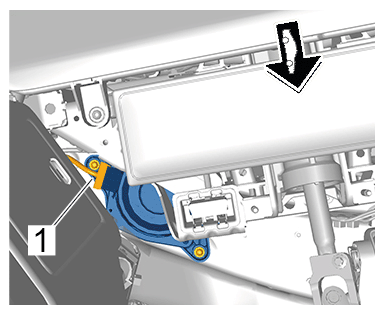

Release and unplug electric plug connection -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection

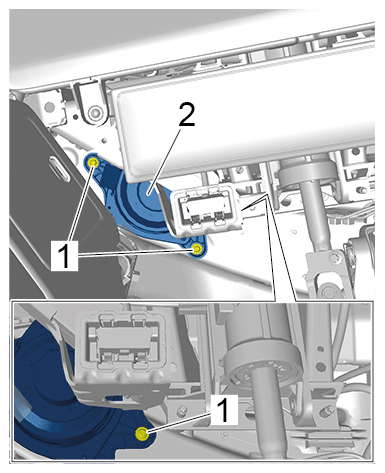

Unscrew fastening screws -1- and remove subwoofer -2- .

G15535076

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Subwoofer
