Removing VTS Antenna Line

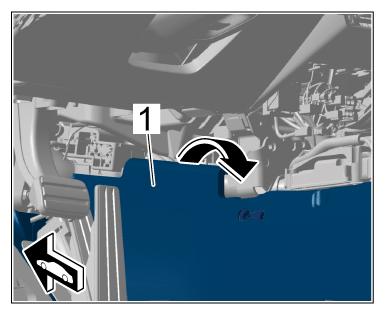

  1. Lift carpet -1-  at the sides in the driver's footwell and fold it over -arrow-  .
    G15535070Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Carpet at the sides in driver's footwell

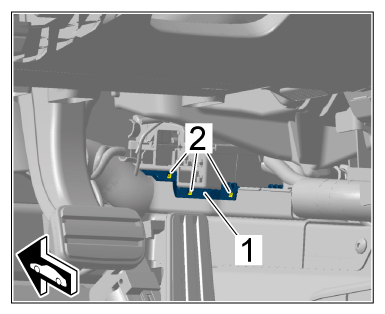

  2. Unclip cover on cable duct -1-  (-2-  ).
    G15535071Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cable duct cover

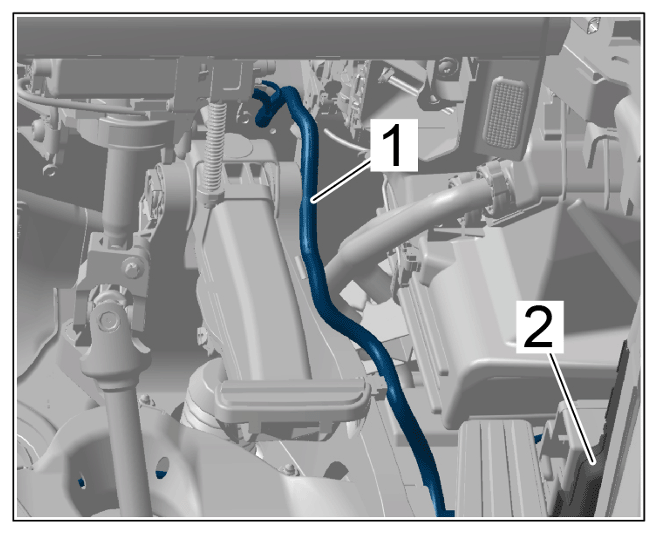

  3. Remove VTS antenna line -1-  .
    1. 3.1 Cut off and insulate VTS antenna line -1-  .
    2. 3.2 Guide VTS antenna line -1-  through the cable duct -2-  to the rear and remove it.
G15535072Courtesy of PORSCHE CARS NORTH AMERICA, INC.

VTS antenna line
