Removing Control Unit For External Communication

Information

Cross-installation of the external communication control unit with the external communication control unit from another vehicle is not permitted and can result in damage to the software.

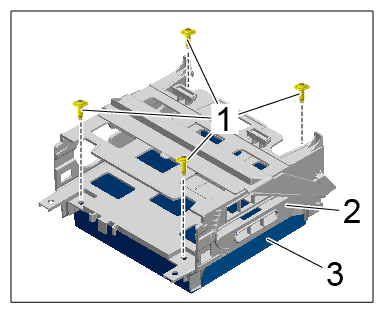

  1. Unscrew fastening screws -1-  on holder for central computer -2-  and remove control unit for external communication -3-  .
G15535061Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Control unit for external communication
