Removing GPS Antenna

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

→ Switch off electrical loads before disconnecting or removing them.

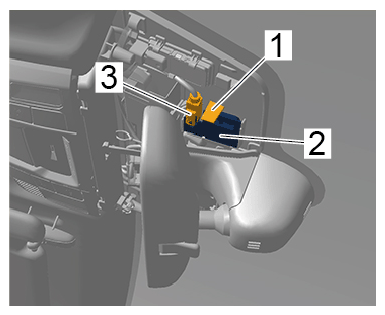

Remove GPS antenna -2- .
1. 1.1 Open clamp -1- and remove GPS antenna -2- from the holder.
2. 1.2 Release and unplug electric plug connection -3- .
3. 1.3 Remove GPS antenna -2- .

G15535052

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

GPS antenna
