Home >> Porsche >> 2021 >> 911 Targa 4 >> Repair and Diagnosis >> Accessories & Equipment >> Infotainment >> 91 Radio, On-Board Computer Park Assist -- 992 - 911 CARRERA (992) >> WM, 911019 Removing And Installing Front Display And Operator Control Unit >> Technical Values

Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2

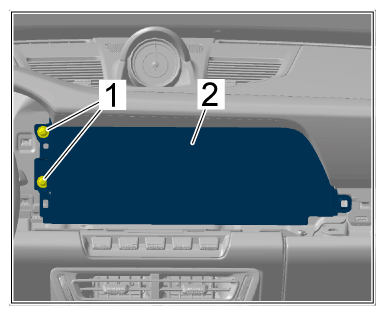

Fastening screws securing front display and operator control unit to dashboard Item 1 Tightening torque 3.2 Nm (2.1 ftlb.)
G15535041Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws
