Removing Central Driver Assistance System Control Unit
NOTE:
Voltage peaks
- Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
→ Switch off electrical loads before disconnecting or removing them.
Information
Always comply with the regulations for handling ESD-sensitive components!
- Always wear approved work clothes and shoes when carrying out assembly work.
- Do not remove new part from ESD (electrostatic discharge) protective packaging until shortly before installation and only at the installation position.
- Do not touch electric pins and plug contacts.

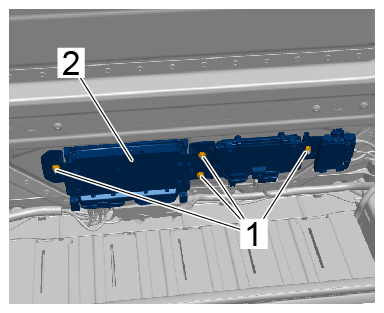

- Unscrew fastening nuts -1-
and place control unit holder -2-
with connected control units on the floor.
Control unit holder
Information
The number of electric plug connections will vary depending on equipment.

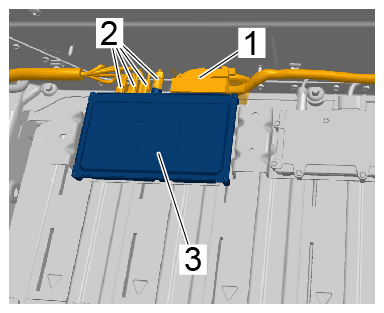

- Release and disconnect electric plug connections -1 and 2-
on central driver assistance system control unit -3-
.
Electric plug connections

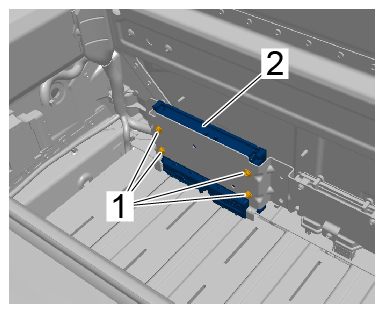

- Unscrew fastening screws -1- and remove central driver assistance system control unit -2- from the control unit holder.
Central driver assistance system control unit
