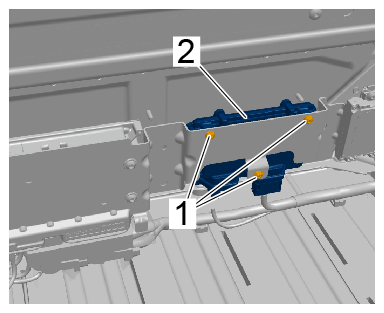

| Infrared camera control unit |
Item 1 |
Tightening torque |
5 Nm (3.5 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Infrared camera control unit |

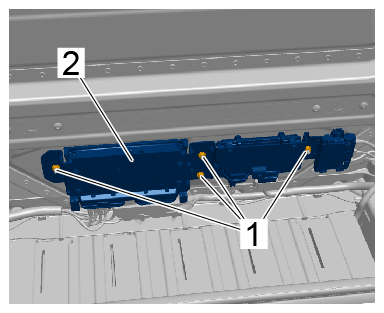

| Control unit holder |
Item 1 |
Tightening torque |
8 Nm (6 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Control unit holder |
