Removing Infrared Camera Control Unit

Information

Always comply with the regulations for handling ESD-sensitive components!

• Always wear approved work clothes and shoes when carrying out assembly work.
• Do not remove new part from ESD (electrostatic discharge) protective packaging until shortly before installation and only at the installation position.
• Do not touch electric pins and plug contacts.

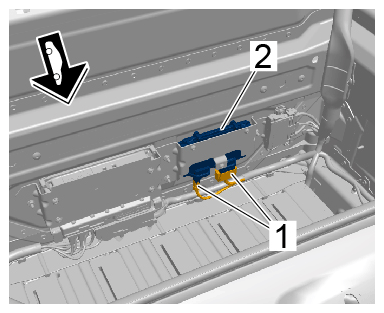

1. Release and disconnect electric plug connections -1-  on infrared camera control unit -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connections

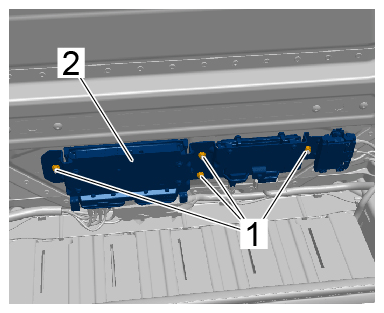

2. Unscrew fastening nuts -1-  and place holder -2-  with connected control units on the floor.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Control unit holder

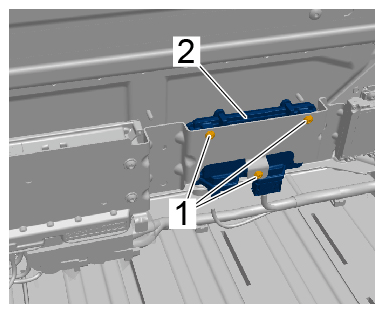

3. Unscrew fastening screws -1-  and remove infrared camera control unit -2-  from the holder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Infrared camera control unit
