Installing Infrared Camera Control Unit

1. Installation is performed in reverse order. Pay particular attention to the following:

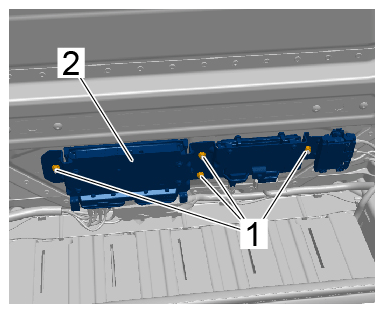

   Tighten fastening screws -1-  to > Tightening torque 5 Nm (3.5 ftlb.)  until secure.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Infrared camera control unit

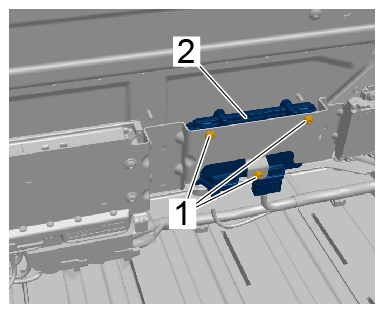

Tighten fastening nuts -1-  to > Tightening torque 8 Nm (6 ftlb.)  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Control unit holder
