Removing Infrared Camera

1. Release and disconnect electric plug connection on infrared camera.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

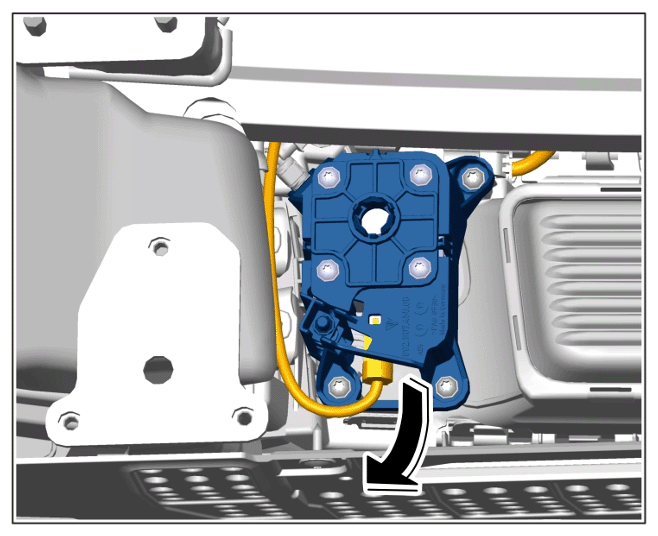

   Electric plug connection

2. Loosen fastening screws on infrared camera holder and guide out infrared camera and holder until the infrared camera washer jet is accessible.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

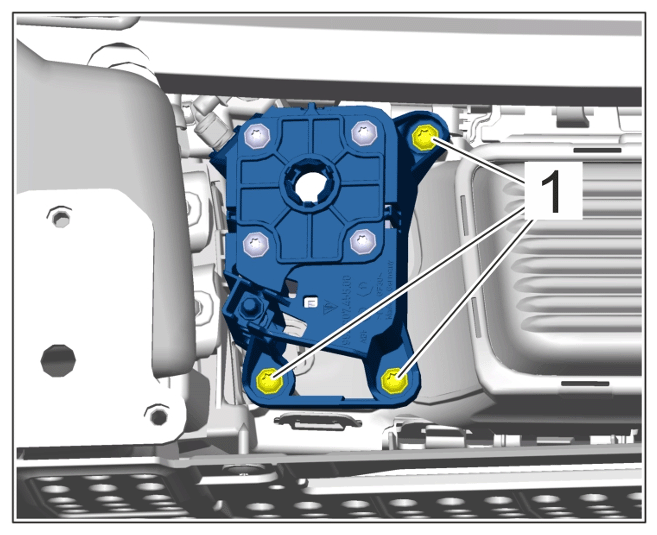

   Fastening screws on infrared camera holder

3. Pull infrared camera washer jet up and out.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

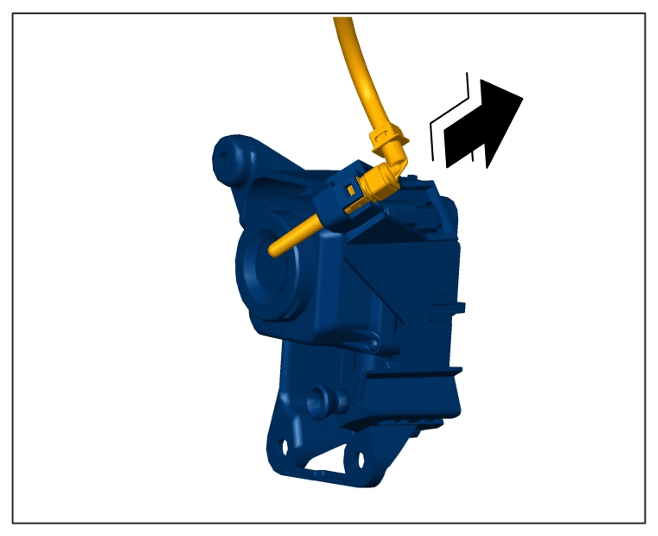

   Infrared camera washer jet

4. Loosen fastening screws on infrared camera and remove infrared camera by pulling it forward out of the holder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

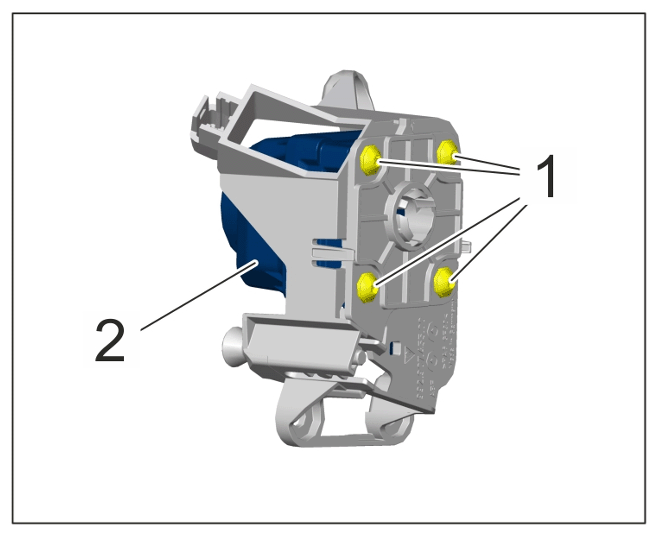

Fastening screws for infrared camera
