Installing Infrared Camera

1. Installation is performed in reverse order.

   Electric plug connection must engage securely.

   Tighten fastening screw securing infrared camera -1-  to infrared camera holder to > Tightening torque 2.5 Nm (1.75 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws for infrared camera

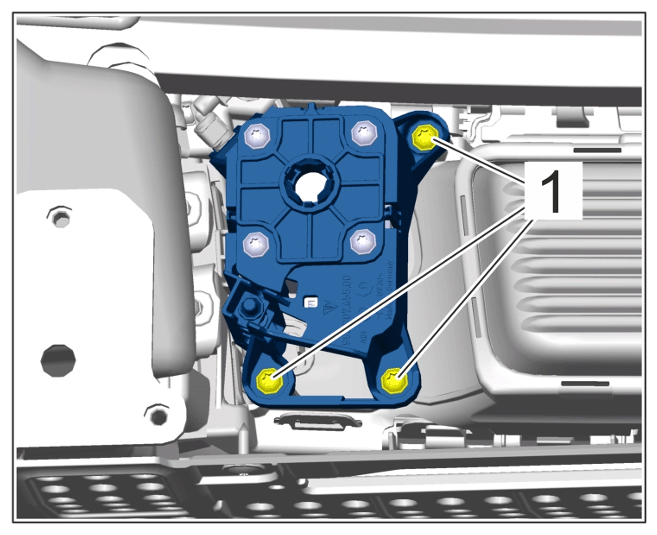

Tighten fastening screw securing infrared camera holder -1-  to front apron to > Tightening torque 2.5 Nm (1.75 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws on infrared camera holder
