Teaching PVTS Driver Cards (Vehicles With Era GLONASS Emergency Call System)

NOTE: Voltage drop
  • Irreparable damage to control unit
  • Damage to control unit
  • Fault entries in the control unit
  • Control unit programming/coding is aborted
  • Malfunctions in the control unit, even during programming
    1. Switch off ignition before disconnecting the control unit.
    2. Make sure that the power supply is not interrupted during programming/coding.
    3. Connect the battery charger with at least > current 90 A  to the vehicle battery.
  1. Connect the Tester to the vehicle and start it. Switch on ignition.

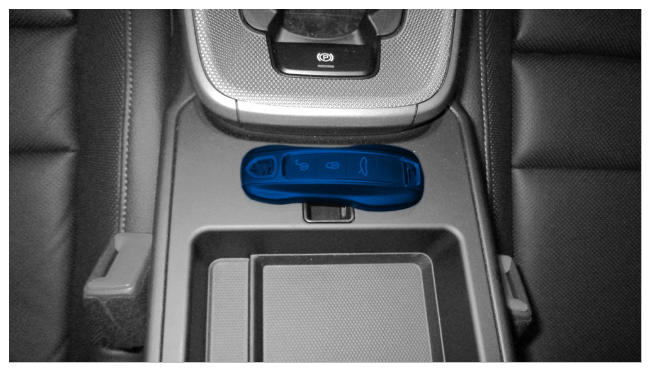

  2. Place original remote control (hand-held transmitter) in emergency start tray.
    G15535005Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Emergency start tray

  3. Select the vehicle type if required.
  4. Select the Porsche Vehicle Tracking System (PVTS)  control unit in the overview  . Press F12 to continue. The message "Create Vehicle Analysis Log (VAL)?" appears. Press F11 to continue.
  5. Maintenance/repairs  must now be selected.
  6. Teach driver cards  must be selected. Press F12 to continue.
    1. 6.1 Teach driver cards according to menu guidance.

      Read and follow the instructions and information on the Tester.

  7. Back to the overview.
  8. Read out the fault memory  , correct faults that are stored if necessary and clear the fault memory.
  9. Exit the diagnostic application. Switch off ignition. Disconnect the Tester from the vehicle.
