Checking PVTS Activation (With Era-Glonass Option)

  1. Connect the Tester to the vehicle and start it. Switch on ignition.
  2. Place original remote control (hand-held transmitter) in emergency start tray.

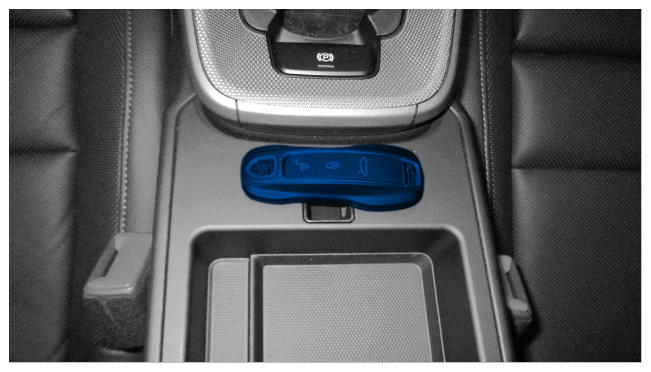

    G15535003Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Emergency start tray

  3. Select the vehicle type if required.
  4. Select the Porsche Vehicle Tracking System (PVTS) - EACU only  control unit in the overview  . Press F12 to continue.
  5. Actual values/input signals  must now be selected.
  6. PVTS  must be selected. Press F12 to continue.
  7. Status: Operating mode  must be selected. Press F12 to continue.
  8. The measured value Normal operation  must be displayed.

    The fault memory entry B17DF52 "PVTS not activated" must not be active.
