Removing PVTS Control Unit (Vehicles With I-No. NZ3 (Emergency Call System Era GLONASS))

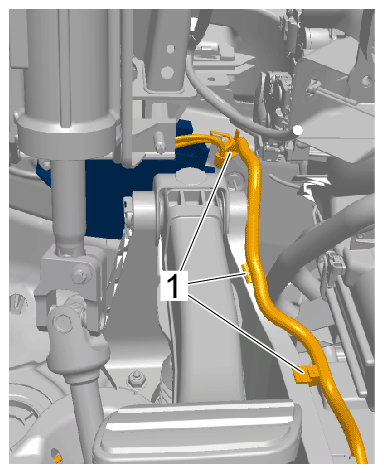

1. Unclip line bracket -1-  for section of line for PVTS control unit.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Section of line for PVTS control unit

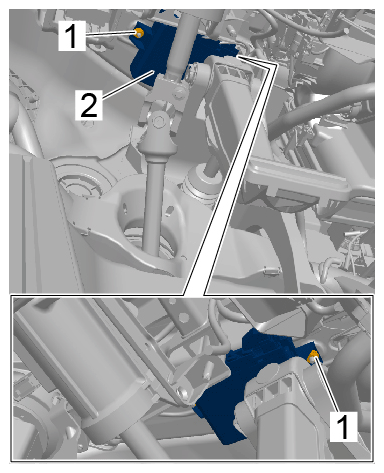

2. Unscrew fastening nuts -1-  and loosen VTS control unit -2-  as far as required until the electric plug connections are accessible.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   PVTS control unit

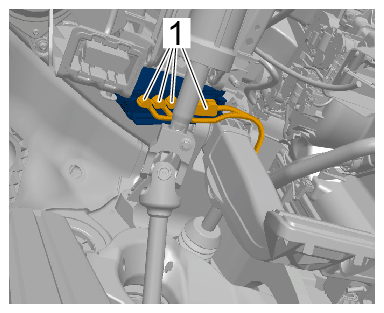

3. Release and unplug electric plug connections -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections
