Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Screw securing knee cushion to center console (upper part) Item 2 Tightening torque 3.2 Nm (2.2 ftlb.)

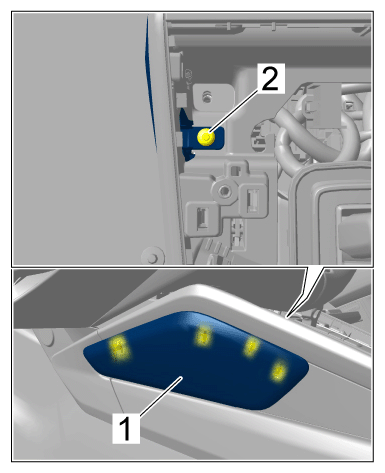

G15534984Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Knee cushion
