Subsequent Work

Information

Check clips. They must not be bent or broken.

Make sure that all locking lugs have engaged correctly.

Check that they are fitted correctly.

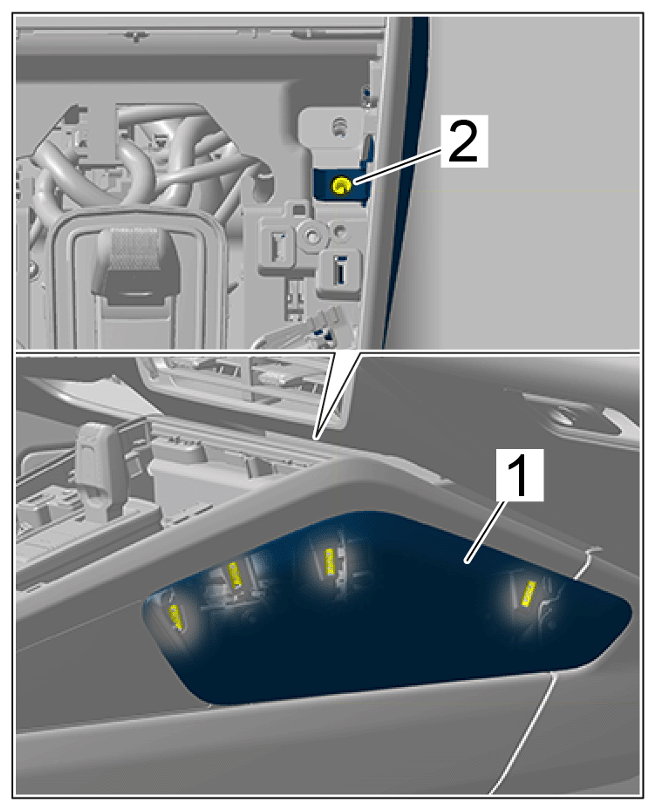

1. 1.1 Clip in knee cushion at the right -1-  .
2. 1.2 Tighten screw -2-  to > Tightening torque 3.2 Nm (2.2 ftlb.)  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Knee cushion, right
