Removing Plug Socket

1. Remove front center console trim -1-  .

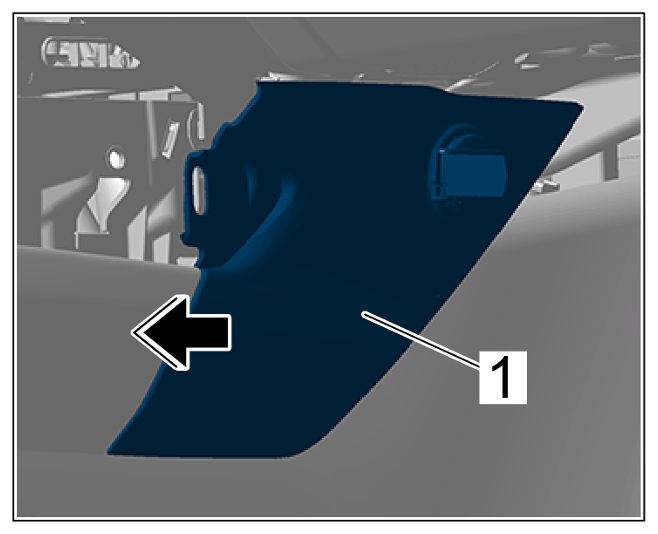

   1. 1.1 Push front center console trim -1-  forward -arrow-  and move it aside until the electric plug connection is accessible.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Front center console trim

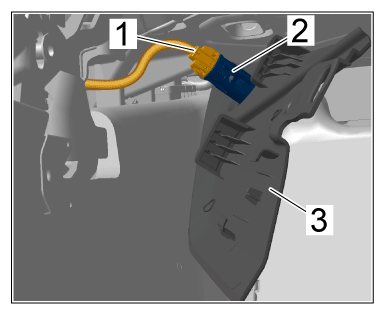

   2. 1.2 Release and disconnect electric plug connection -1-  at the plug socket -2-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Plug socket

   3. 1.3 Remove front center console trim -3-  from the vehicle.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Plug socket

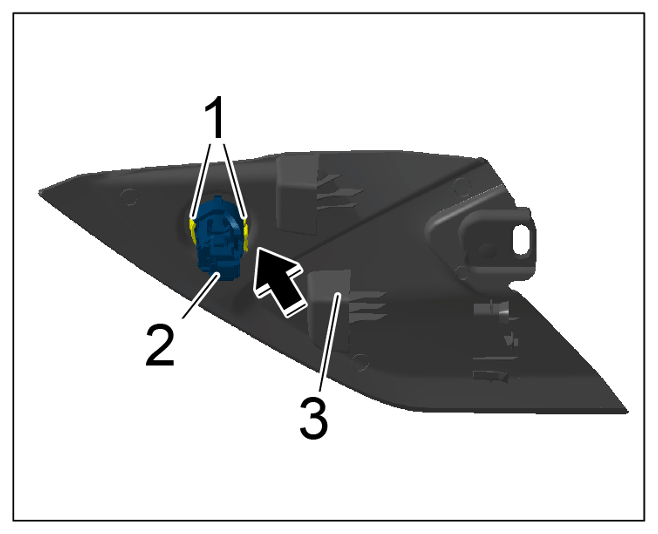

2. Press in retaining lugs -1-  on plug socket -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Retaining lugs

3. Press plug socket -2-  out of the front center console trim -3-  (-arrow-  ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Retaining lugs
