Removing Gateway Control Unit
NOTE:
Voltage peaks
- Risk of damage to electrical load or to the control unit
- Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
- Switch off electrical loads before disconnecting or removing them.
Information
Always comply with the regulations for handling ESD-sensitive components!
- Always wear approved work clothes and shoes when carrying out assembly work.
- Do not remove new part from ESD (electrostatic discharge) protective packaging until shortly before installation and only at the installation position.
- Do not touch electric pins and plug contacts.
- Loosen gateway control unit and remove it.

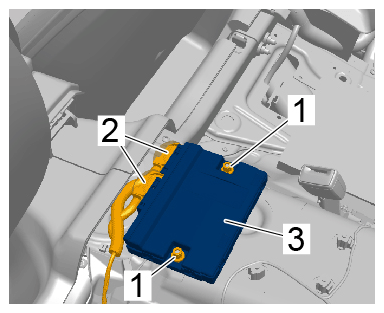

- 1.1 Screw off fastening nuts -1- .
- 1.2 Release and disconnect electric plug connections -2- and remove gateway control unit -3- .
Gateway control unit
