Removing Instrument Cluster

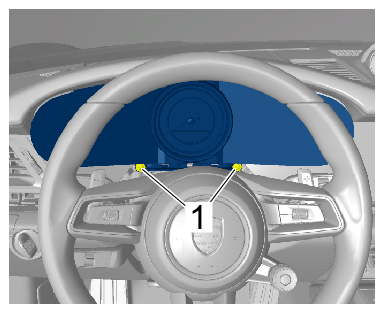

  1. Unscrew fastening screws -1-  .
    G15534971Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screws

  2. Cover steering column with a soft cloth to avoid scratching the display.

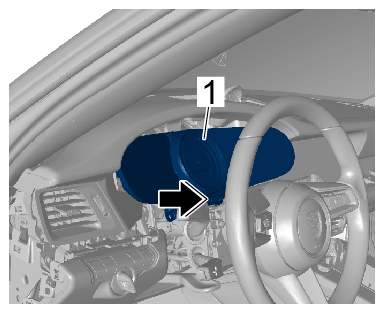

  3. Swivel the instrument cluster -1-  down -arrow-  .
    G15534972Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Instrument cluster

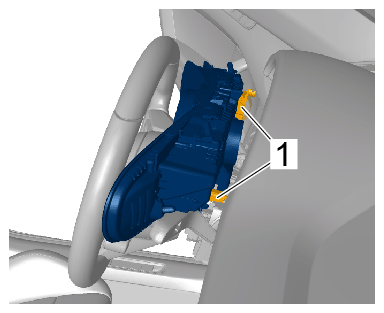

  4. Release and unplug electric plug connections -1-  .
    G15534973Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections

  5. Guide the instrument cluster out between the dashboard and steering wheel.
