Subsequent Work

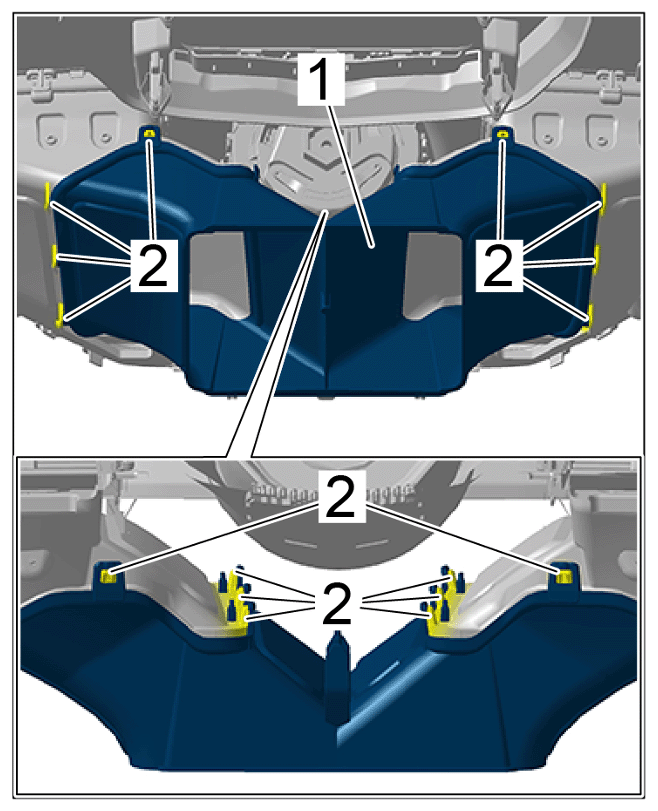

  1. Secure air duct -1-  with fixing clips -2-  .
    G15534968Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Air duct

  2. Install trim panel for (center) loudspeaker.

    >  WM, 70901900 REMOVING AND INSTALLING TRIM PANEL FOR (CENTRE) LOUDSPEAKER
