Removing Auxiliary Headlight

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

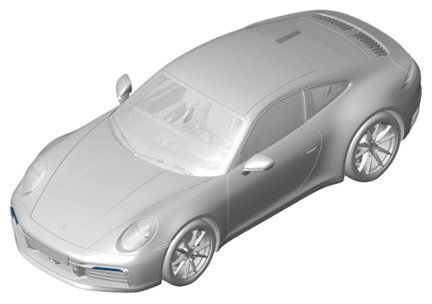

Installation position

1. Remove retaining frame for cooling-air flaps.

   193519 REMOVING AND INSTALLING COOLING-AIR FLAPS - information on "Removing"

2. Release and disconnect electric plug connection for auxiliary headlight.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

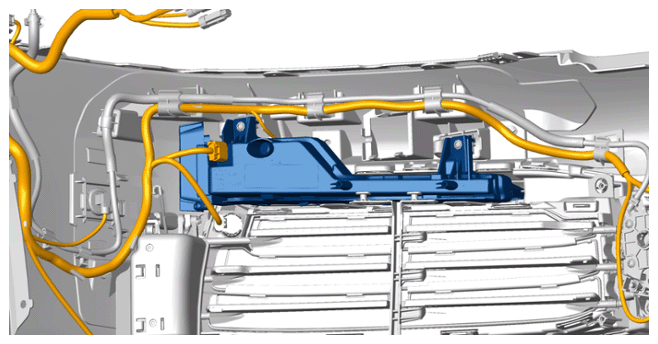

   Electric plug connection for auxiliary headlight

3. Loosen fastening screws for auxiliary headlight and remove auxiliary headlight.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

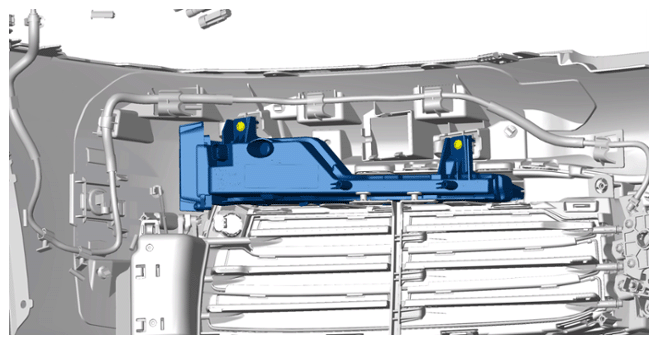

   Fastening screws for auxiliary headlight
