94 Lights, Lamps, Switches Exterior -- 992 - 911 CARRERA (992)
>>
WM, 947019 Removing And Installing Additional Brake Light In Rear Spoiler
>>
Remove Aux. Brake Light In Rear Spoiler
>>
Removing Additional Brake Light In Rear Spoiler
Removing Additional Brake Light In Rear Spoiler
Extend rear spoiler.
Disengage additional brake light using a suitable tool.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

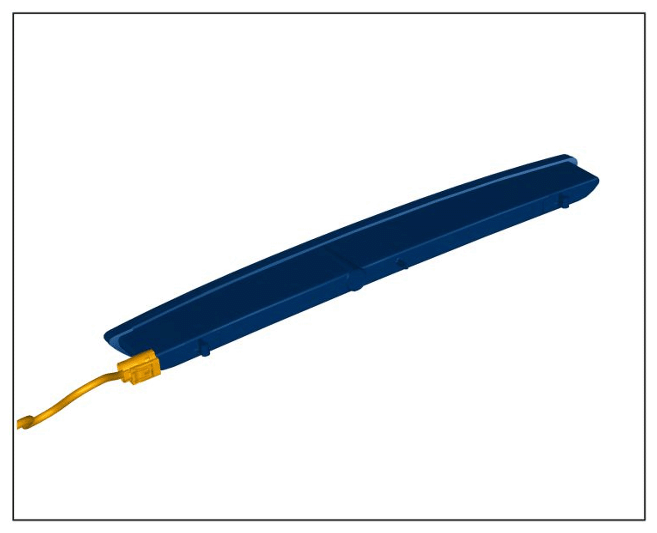

Disengaging additional brake light
Carefully remove additional brake light until the electric plug connection is accessible.
Disconnect electric plug connection and remove additional brake light.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

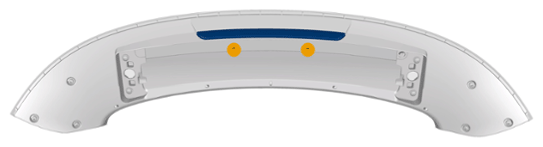

Electric plug connection
