Removing Steering Column Switch

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

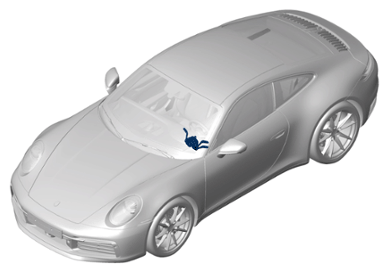

Installation position

1. Release and disconnect electric plug connection on the steering-column switch.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

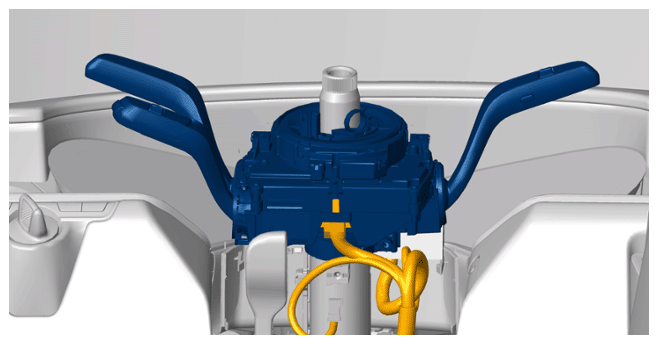

   Electric plug connection

2. Loosen fastening screw and disconnect steering-column switch with steering wheel electronics control unit by pulling it to the rear.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

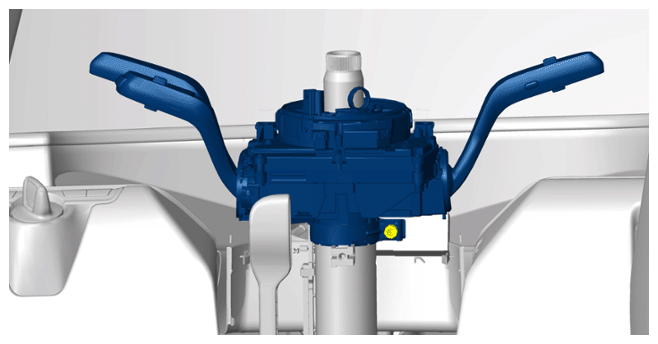

Fastening screw for steering-column switch
