94 Lights, Lamps, Switches Exterior -- 992 - 911 CARRERA (992)
>>
WM, 943119 Removing And Installing Tail Light
>>
Technical Values
Technical Values
Location
Description
Type
Basic value
Tolerance 1
Tolerance 2
Fastening screws securing tail light to body
Item 1
Tightening torque
6 Nm (4.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

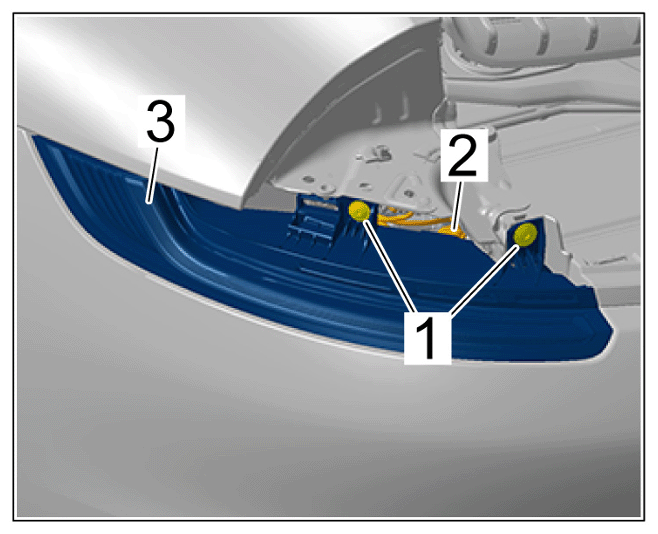

Tail light
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
