Removing Tail Light

  1. Remove tail light.
    1. 1.1 Unscrew fastening screws -1-  .
    2. 1.2 Guide out tail light -3-  until the electric plug connection -2-  is accessible.
    3. 1.3 Release and unplug electric plug connection -2-  .

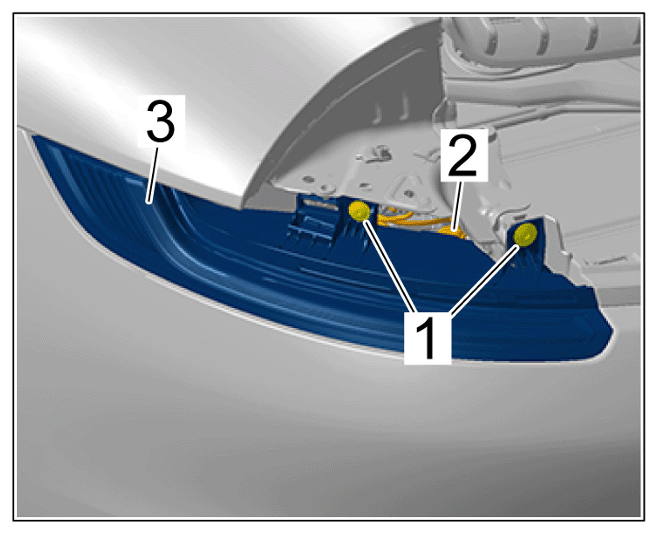

    G15535361Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tail light
