Installing Centre Tail Light

  1. Installation is performed in reverse order. Pay particular attention to the following:

    Tighten fastening screws -1-  for centre tail light to body to > Tightening torque 6 Nm (4.5 ftlb.)  .

    Tighten fastening screws -2-  for centre tail light to body to > Tightening torque 6 Nm (4.5 ftlb.)  .

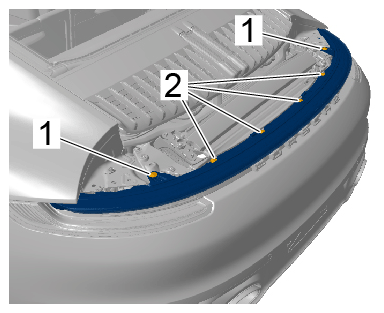

    G15535357Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Centre tail light
