Removing Retainer

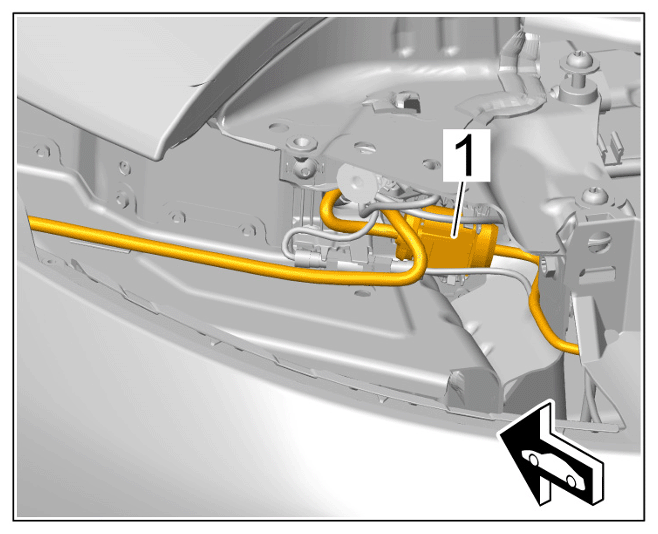

1. Release and unplug electric plug connection -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

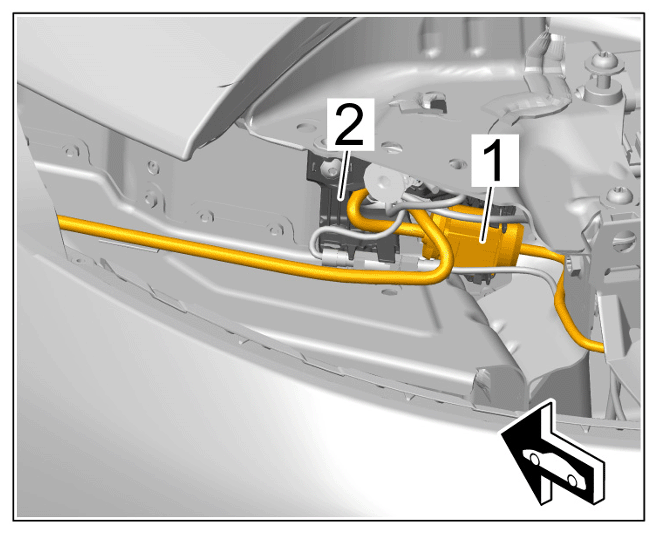

2. Remove electric plug connection -1-  from retainer mount -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

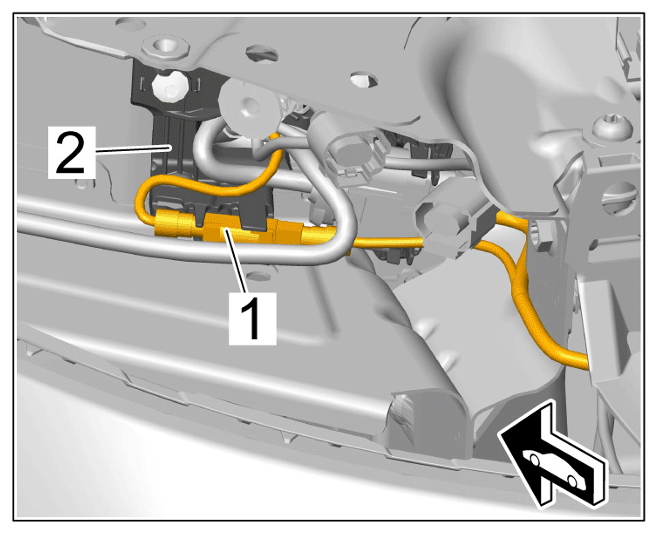

3. Remove electric plug connection -1-  from retainer mount -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

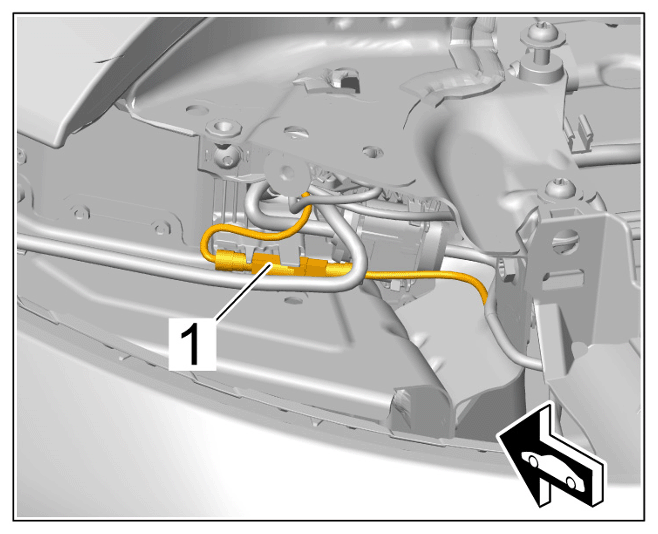

4. Release and unplug electric plug connection -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

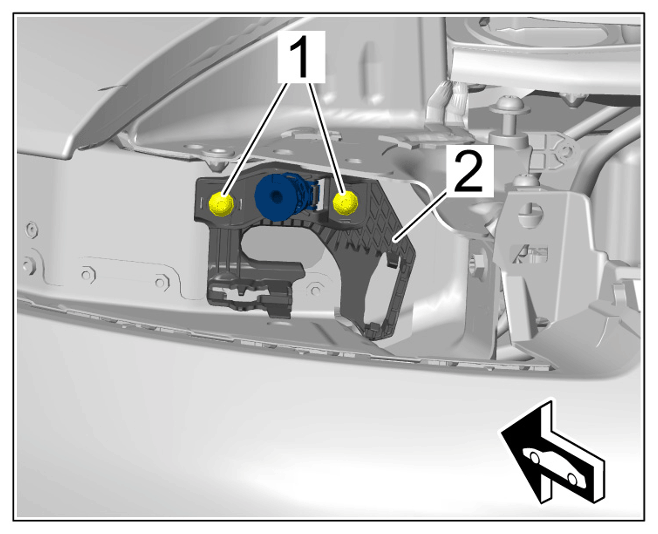

5. Unscrew screws -1-  on retainer mount -2-  , guide passenger compartment wiring harness through the retainer mount -2-  and remove retainer mount -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Retainer
