Removing Led Light Bulb (Standard And PDLS)

Information

Always comply with the regulations for handling ESD-sensitive components!

• Always wear approved work clothes and shoes when carrying out assembly work.
• Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
• Do not touch electric pins and plug contacts.

Information

• Only work on removed headlights in a clean work area and on a soft surface.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

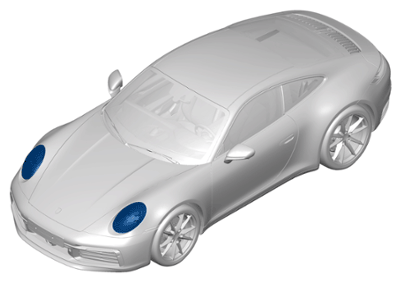

Installation position

1. Cut tie-wrap -1-  on wire harness for LED light bulb using side cutters.

   The wire harness must not be damaged.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

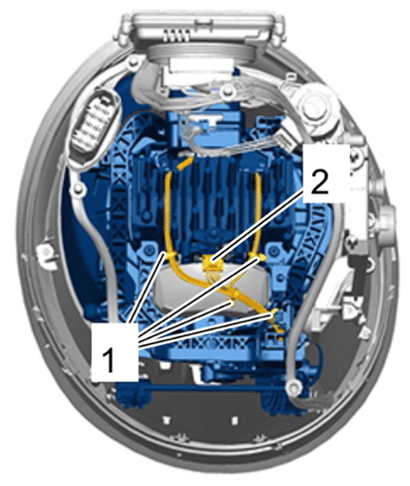

   Headlights - standard and PDLS

2. Release and unplug electric plug connection -2-  .
3. Loosen fastening screws for LED light bulb and remove LED light bulb from the headlight.

   Do not touch the front of the LED light bulb, only the housing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

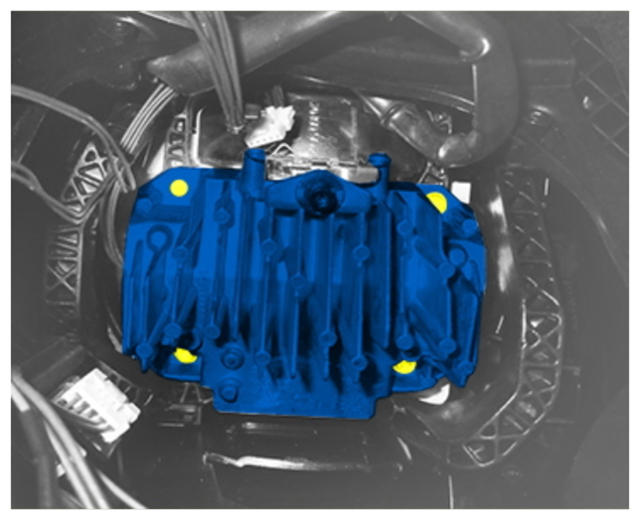

   Fastening screws for LED light bulb
