Removing Headlight Control Unit

Information

Always comply with the regulations for handling ESD-sensitive components!

• Always wear approved work clothes and shoes when carrying out assembly work.
• Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
• Do not touch electric pins and plug contacts.

Information

• Only work on removed headlights in a clean work area and on a soft surface.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

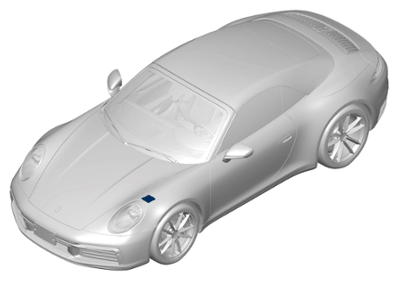

Installation position

1. Loosen fastening screws on headlight control unit.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Headlight control unit

2. Remove headlight control unit by pulling it up until the electric plug connection is accessible.
3. Release and pull off electric plug connection.
   1. 3.1 Press locking lug, swivel the connector lock down and open it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

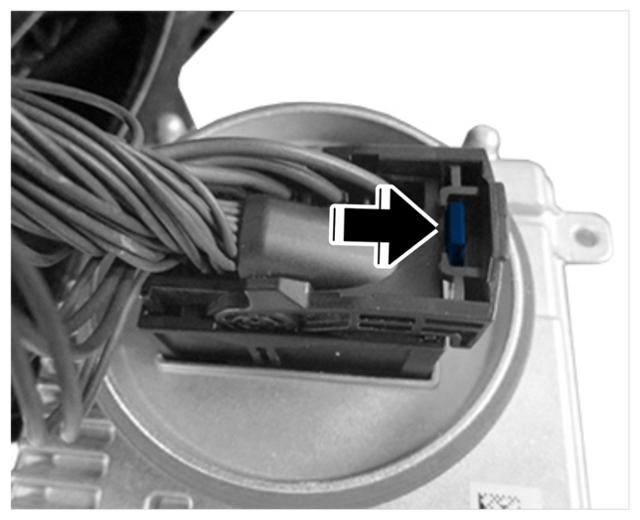

   Pressing locking lug

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

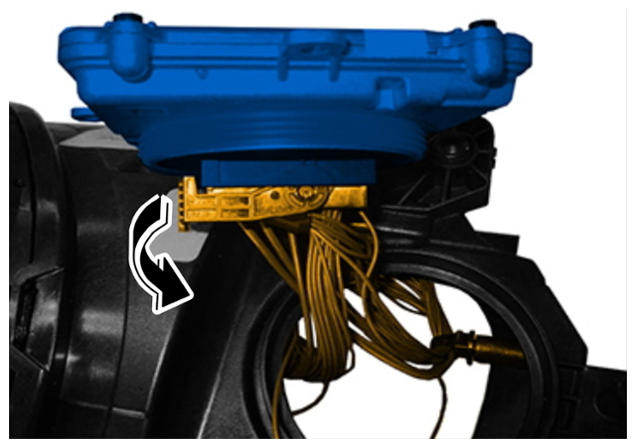

   Electric plug connection
